標配藍牙功能

遠程配置、控制和維護

提高工作安全性

實時潤滑器功能和反饋

高壓能力優勢，例如應用于重力拉緊裝置或需要較長遠程潤滑脂管線的地方

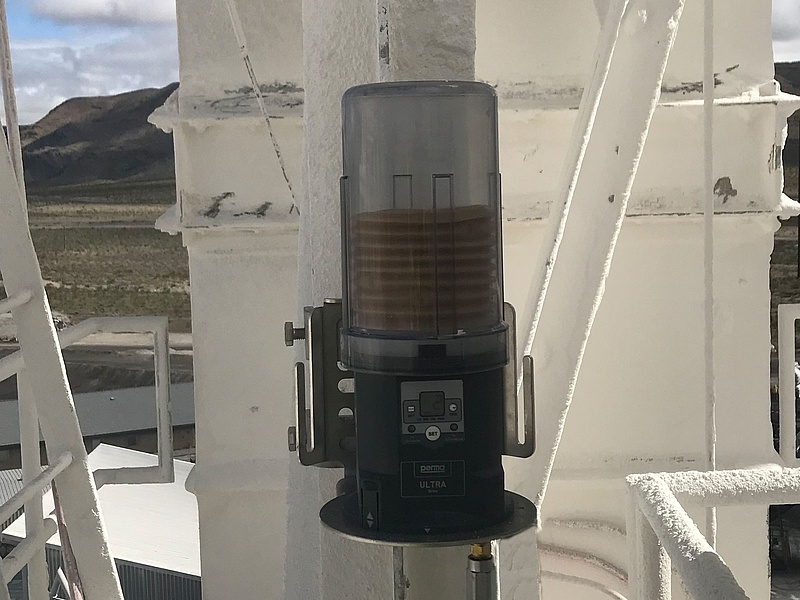

在寒冷地區和較高溫度下普遍使用

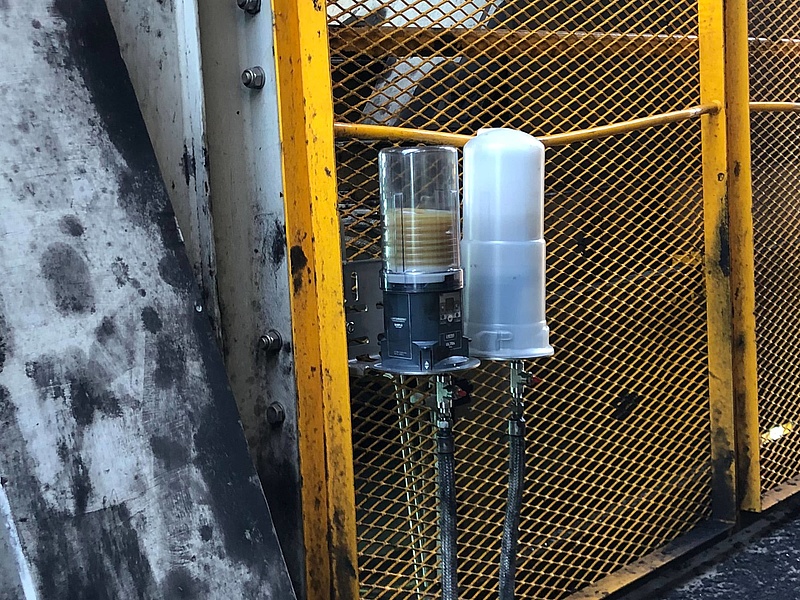

廣泛的遠程安裝選項，通過將系統安裝在安全且易于訪問的位置來提高工作場所的安全性

簡單的單鍵操作

根據要求精確設置，防止?jié)櫥蛔愫瓦^度潤滑

各種分配率選項 - 延長維護間隔

裝配件組套——ULTRA標準載荷單點65mm梁夾無管

(商品號：116335)

1 x Mounting bracket ULTRA

2 x Beam clamp 65 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝配件組套——ULTRA標準載荷單點網掛無管

(商品號：116336)

1 x Mounting bracket ULTRA

2 x Cage hanger arm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝配件組套——ULTRA重載單點65mm梁夾無管

(商品號：116337)

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

2 x Beam clamp 65 mm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝配件組套——ULTRA重載單點網掛無管

(商品號：116338)

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

2 x Cage hanger arm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝配件組套——ULTRA標準載荷單點65mm梁夾含5米軟管

(商品號：116339)

1 x Mounting bracket ULTRA

2 x Beam clamp 65 mm

5 m Extreme Heavy Duty hose up to +100 °C o? 11.8 mm x i? 6.4 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝配件組套——ULTRA標準載荷單點網掛含5米軟管

(商品號：116340)

1 x Mounting bracket ULTRA

2 x Cage hanger arm

5 m Extreme Heavy Duty hose up to +100 °C o? 11.8 mm x i? 6.4 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝配件組套——ULTRA重載單點65mm含5米軟管

(商品號：116341)

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

5 m Extreme Heavy Duty hose up to +100 °C o? 11.8 mm x i? 6.4 mm

2 x Beam clamp 65 mm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

裝配件組套——ULTRA重載單點網掛5米軟管

(商品號：116342)

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

5 m Extreme Heavy Duty hose up to +100 °C o? 11.8 mm x i? 6.4 mm

2 x Cage hanger arm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male
